Brief Introduction

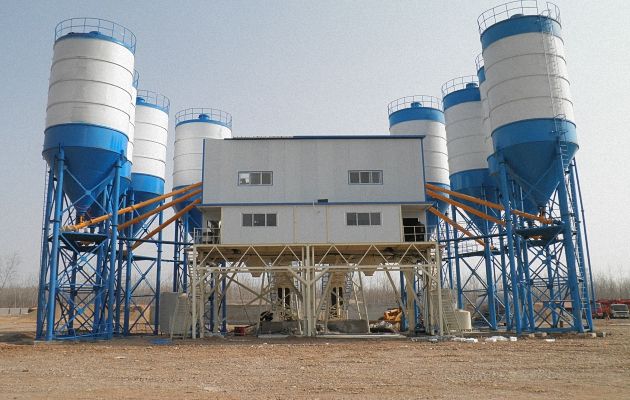

Concrete Batching Mixer Plant adopts world’s latest and advanced technology. Compared with last generation plant, it has higher efficiency, lower energy consumption and longer service life. Our concrete batching plant has won high reputation at home and abroad.
Features
1.High efficiency, low fuel consumption, and environmental care;
2. Modular function and design; quick installation and site transfer.
3. HZS150 Concrete Batching Mixer Plant equipped with Italy SICOMA dual-horizontal axis forced type main mixing machine, featuring superior mixing capacity and high reliability.
4.Measurement, control and signal transfer element all adopt products of world famous brand; independent measuring of various kinds of materials (or cumulative measurement), stable performance and accurate measurement.
5. Advanced industrial computer + PLC control mode, inferior PLC executive signal sampling and output control, superior industrial computer dynamic displays the production process and management. It can achieve full automatic control and manual control, featuring simple operation, friendly interface, high reliability and flexible expanding.
6. It can also be designed according to the requirements and conditions (i.e. site, output, environmental care, structural appearance).
Main Specifications
Water is flow-metering, simple and practical, highly accurate dosing. Aggregate batching system adopts PLD4800 concrete batcher which offers efficient and accurate measurement; Powder lot is electronic measured, highly accurate dosing; Mixing and aggregate lifting system adopt JS3000 New Type Bridge Using Cement Mixer Machine which offers high quality and efficient mixing; Adopt combined structure and modular unit, convenient to install and remove;
Discharge Height
m
3.8(for customers choice)
Aggregate Bin Capacity
m3
4.8
Max. Weighing Value of Aggregate
kg
1800
Max. Weighing Value of Cement
kg
800
Max. Weighing Value of Water
kg
1500
Max. Weighing Value of Additive
kg
60
Aggregate Measuring Accuracy
%
2
Water Measuring Accuracy
%
1
Cement Measuring Accuracy
%
1
Additive Measuring Accuracy
%
1
Cement Screw Conveyor
_
Optional
Cement Silo Capacity
_
Optional
Control Mode
_
Auto/Semi Control
